VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Orlando, FL | Hale Windows Orlando

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around a slim 2.56-inch profile and a multi-point locking system that secures the door at three points along the frame instead of one. It’s the door Orlando homeowners choose when they want a clean, contemporary front entry that holds up to Florida humidity, afternoon thunderstorms, and hurricane-season wind loads without warping, swelling, or rusting. Hale Windows Orlando is an authorized ViewLux installation partner in Orlando, FL, which means we install this door to factory spec and AAMA installation standards, not to whatever shortcut gets the job done fastest. Call (850) 613-9382 to talk through options and schedule a free measurement.

Call (850) 613-9382

Product Overview – VLX 100 Swing / Entry Door

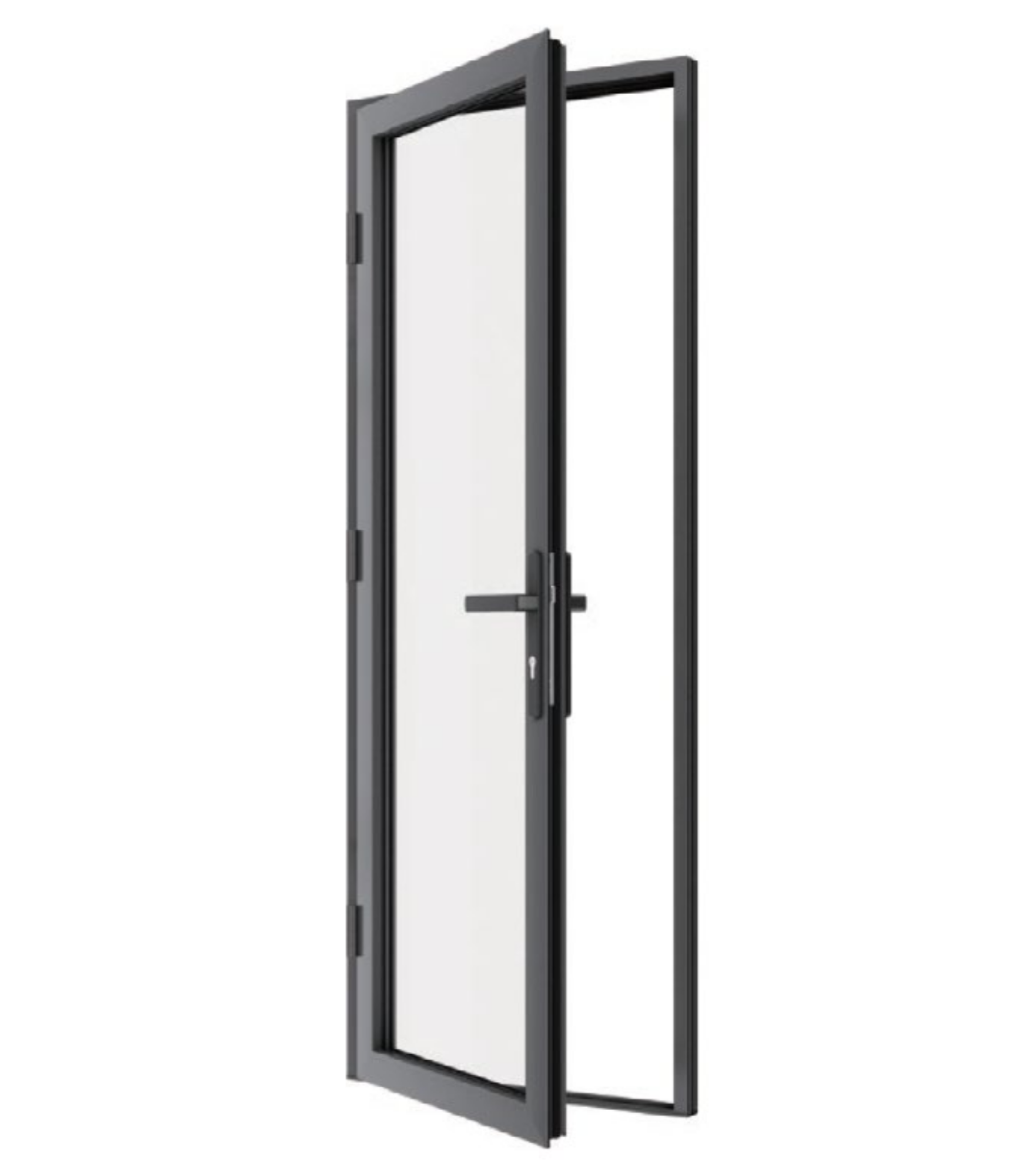

The VLX 100 is a single-entry aluminum swing door with a minimalist frame profile measuring 2.56 inches wide. That narrow sightline is the point. Where traditional entry doors carry thick, chunky frames that visually shrink the glass area, the VLX 100 keeps the frame lean so the door reads as mostly glass and clean lines. The wall thickness on the aluminum extrusion is 0.098 inches, which gives the frame structural stiffness without the bulk of a steel or wood door system.

It’s designed for homeowners who want an entry that feels architectural rather than decorative. We see this door specified most often on mid-century modern houses in College Park, contemporary builds in Baldwin Park and Winter Park, and renovations in Delaney Park where the homeowner wants the front entry to make a quiet statement. The multi-point locking hardware engages at the top, middle, and bottom of the door slab with a single turn of the handle, which pulls the slab tight against the weatherstripping and makes forced entry significantly harder than a standard single deadbolt setup.

Because the slab and frame are aluminum, the door doesn’t absorb moisture the way wood does. Orlando’s wet season, which runs from May through October, is hard on wood doors. Aluminum doesn’t swell in June humidity or shrink in the dry winter months. That dimensional stability is why this product is a legitimate long-term option for an Orlando entry, not a short-lived statement piece.

Technical Specifications

Here’s the VLX 100 Swing / Entry Door broken down by the numbers and options Hale Windows Orlando can order for your Orlando home:

• Frame material: Extruded aluminum, 0.098″ wall thickness
• Profile width: 2.56 inches
• Maximum span: Up to 48 inches door slab width
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, None
• Thermal performance: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 sealant on perimeter joints
• Impact rating: Impact-resistant laminated glass option available for wind-load requirements

Performance Features

Thermal Efficiency – The VLX 100 frame is built with a thermal break, a non-conductive barrier between the interior and exterior aluminum surfaces. That break interrupts heat transfer through the metal, which in an Orlando summer means the inside face of the frame doesn’t become a radiator. The system carries NFRC energy-performance ratings, which is the standard for comparing door efficiency across brands.

Acoustic Performance – Aluminum frames paired with insulated glass do a meaningful job cutting outside noise. If you live near I-4, the 408, or Colonial Drive, a laminated glass package in the VLX 100 will noticeably reduce road noise compared to a hollow-core or single-pane door. Sound control depends on the glass package you choose, and we’ll walk you through which option makes sense for your street and your tolerance for traffic hum.

Airtightness & Weather Seal – The multi-point lock isn’t just a security feature. It compresses the door slab against the weatherstripping at three contact points, which eliminates the gaps you get with a single lock point. That compression keeps air-conditioned air inside where it belongs and keeps humid Orlando air outside. The rating for airtightness on this system is genuinely good, and it’s something you feel the first August after installation.

Waterproofing – Florida rain hits doors sideways. The VLX 100’s frame design directs water away from the threshold and sill, and we install it with AAMA 812 low-expansion foam sealant on every perimeter joint. That sealant fills the gap between the rough opening and the frame so wind-driven rain can’t find a path behind the door casing and into the wall cavity.

Wind Resistance – Orlando sits in a hurricane-prone region, and Miami-Dade and Florida Building Code wind-load requirements apply to much of Central Florida. The VLX 100 is wind-load rated, and Hale Windows Orlando can configure it with impact-resistant laminated glass to meet the stricter requirements that apply depending on your home’s location and exposure. Laminated glass holds together when struck, so a branch or storm debris doesn’t create an opening that pressurizes your home.

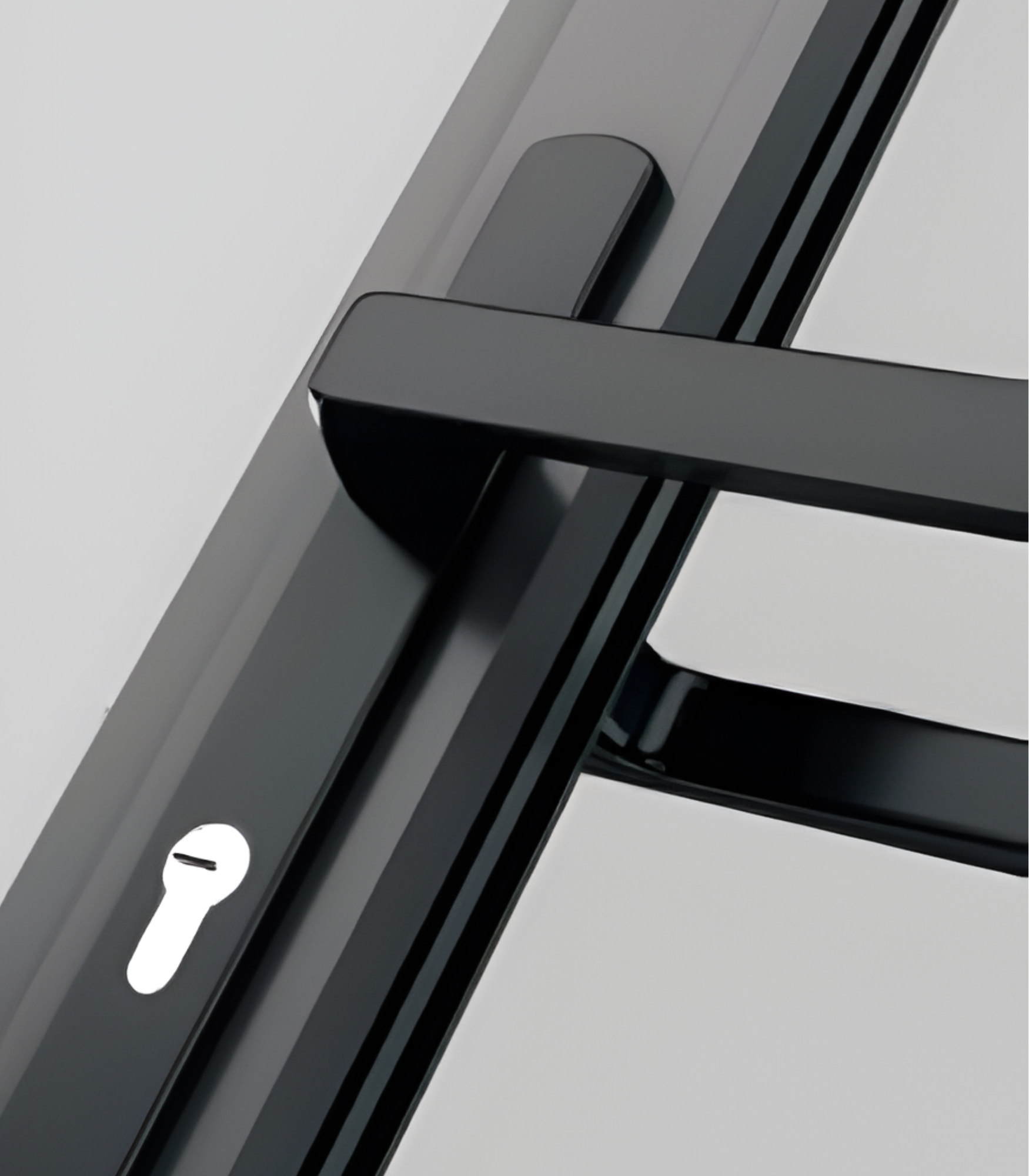

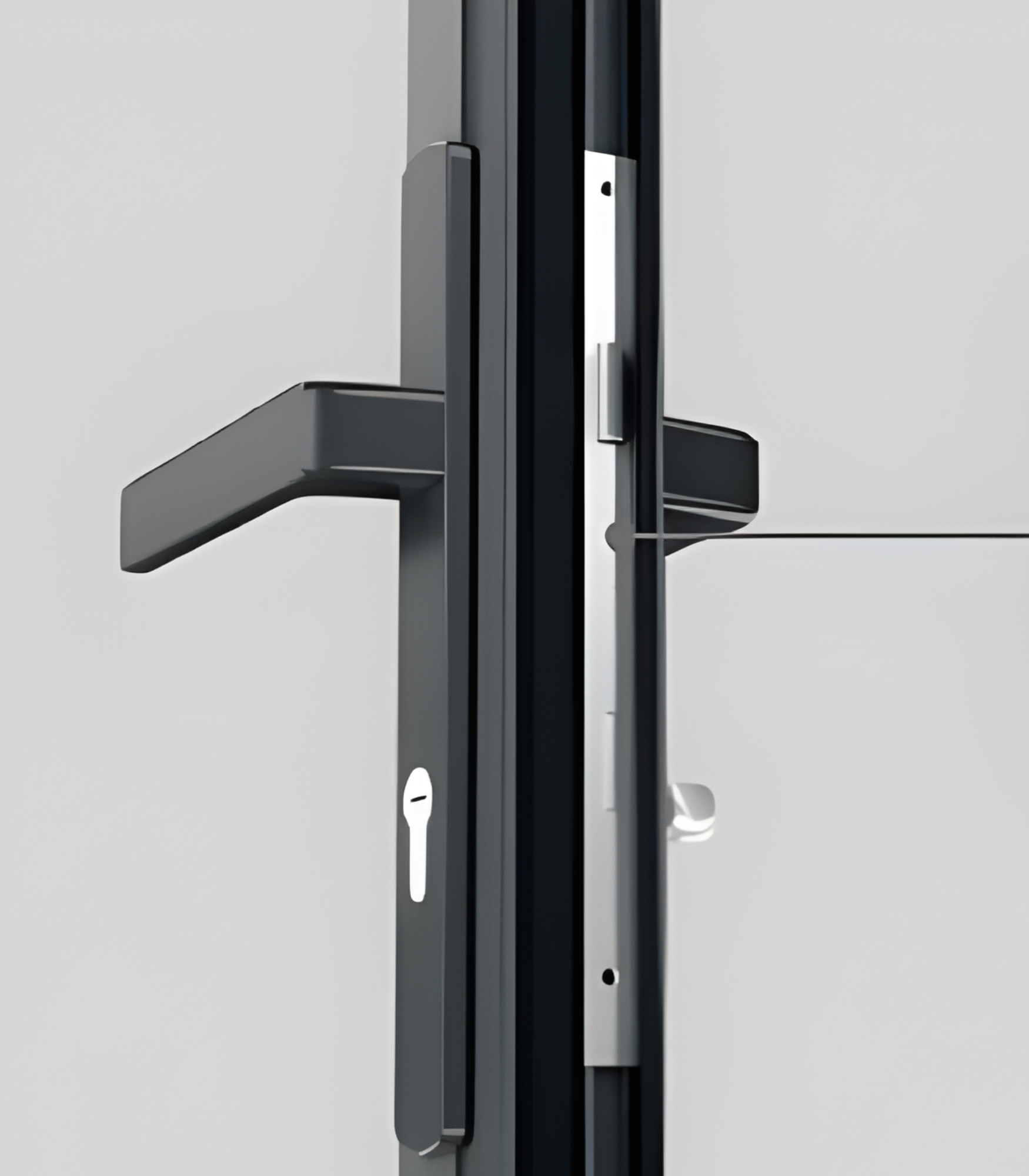

Security & Hardware – The multi-point locking system is the headline here. Three locking points along the full height of the slab, operated by a single handle turn. Combined with the 0.098-inch aluminum frame wall, this door presents a serious obstacle to forced entry. It’s a meaningful step up from a standard entry door with a single deadbolt, and it’s one of the reasons buyers choose this product over cheaper alternatives.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested in Orlando right now, particularly on homes with white or light stucco exteriors where the contrast reads as intentional and modern. Pure White suits coastal and traditional exteriors and disappears into bright facades. Anodized Silver is the most honest aluminum finish, a raw metallic tone that works well on contemporary and industrial-style homes. Bronze is warmer than black and pairs nicely with brick exteriors, which you see throughout Thornton Park and the older neighborhoods near downtown Orlando. Champagne is a lighter warm metallic that suits Mediterranean and Spanish-style homes. Teak Wood is a wood-grain finish for homeowners who want the warmth of wood without the maintenance burden in Florida’s climate.

Glass selection depends on what the door needs to do. Clear glass maximizes light. Frosted and Obscure glass give privacy while still passing light, which is useful for entries that face a street or a close neighbor. Low-E coatings reduce heat gain and UV exposure, protecting flooring and furniture near the entry. Tempered glass is safety glass that breaks into small pieces rather than large shards. Laminated glass is the impact-rated option and also provides the best sound reduction. A retractable screen is available as an option for the swing configuration.

Installation by Hale Windows Orlando in Orlando

An entry door is only as good as the opening it’s set into. That’s not a platitude. A door that’s installed out of level or out of plumb will bind at the strike plate, leak air at the corners, and eventually fail at the hinges or the hardware. The manufacturer warranty on the VLX 100 assumes a professional installation, and improper installation is the fastest way to void it.

Hale Windows Orlando starts every install with a pre-installation inspection of the rough opening. We check the framing for rot, termite damage, and dimensional issues before the new door goes in. If the opening has problems, we fix them before the door is set. In Orlando, where older homes in areas like Colonialtown and Audubon Park often have settled framing, that step matters more than people expect.

We set every VLX 100 level, plumb, and square, which means the slab hangs correctly and the multi-point lock engages without resistance. The perimeter joints get AAMA 812 low-expansion foam sealant, the installation meets AAMA 2400/2410 standards, and we run a final water test on the threshold and perimeter before cleanup. Orlando’s building codes and wind-load requirements vary by location, and we handle the permitting and inspection compliance for you. Call (850) 613-9382 if you want to talk through what your specific home requires.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Orlando

If the VLX 100 Swing / Entry Door sounds like the right front entry for your Orlando home, the next step is a free on-site measurement. We’ll confirm your opening dimensions, review glass and finish options in person, and give you a written line-item quote with no pressure and no change orders down the line. Call (850) 613-9382 to schedule your consultation, or call to ask any question you didn’t see answered here.

Written by the team at Hale Windows Orlando, authorized ViewLux installation partner serving Orlando, FL.
