VLX 100 Pivot Door

VLX 100 Pivot Door in Orlando, FL | Hale Windows Orlando

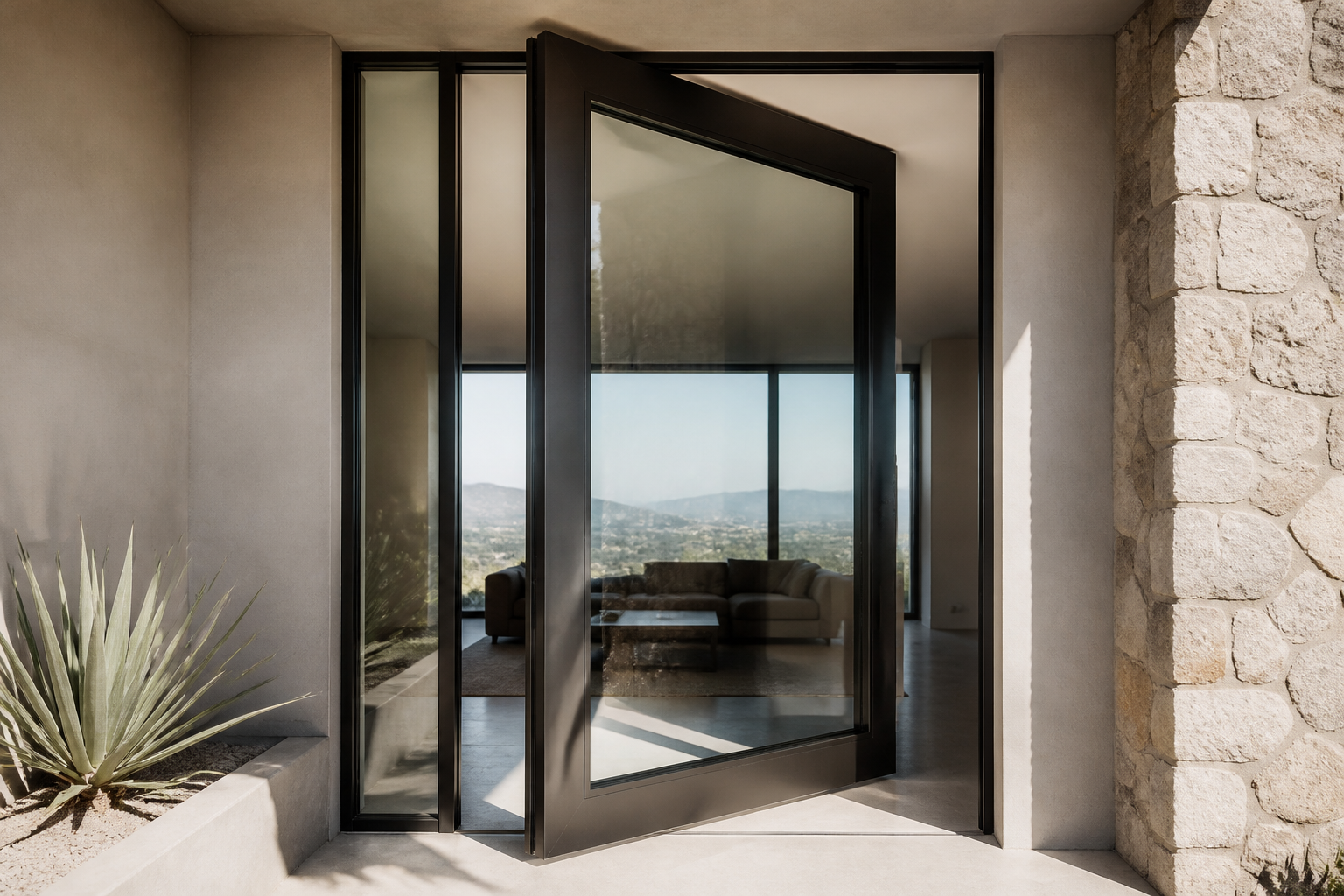

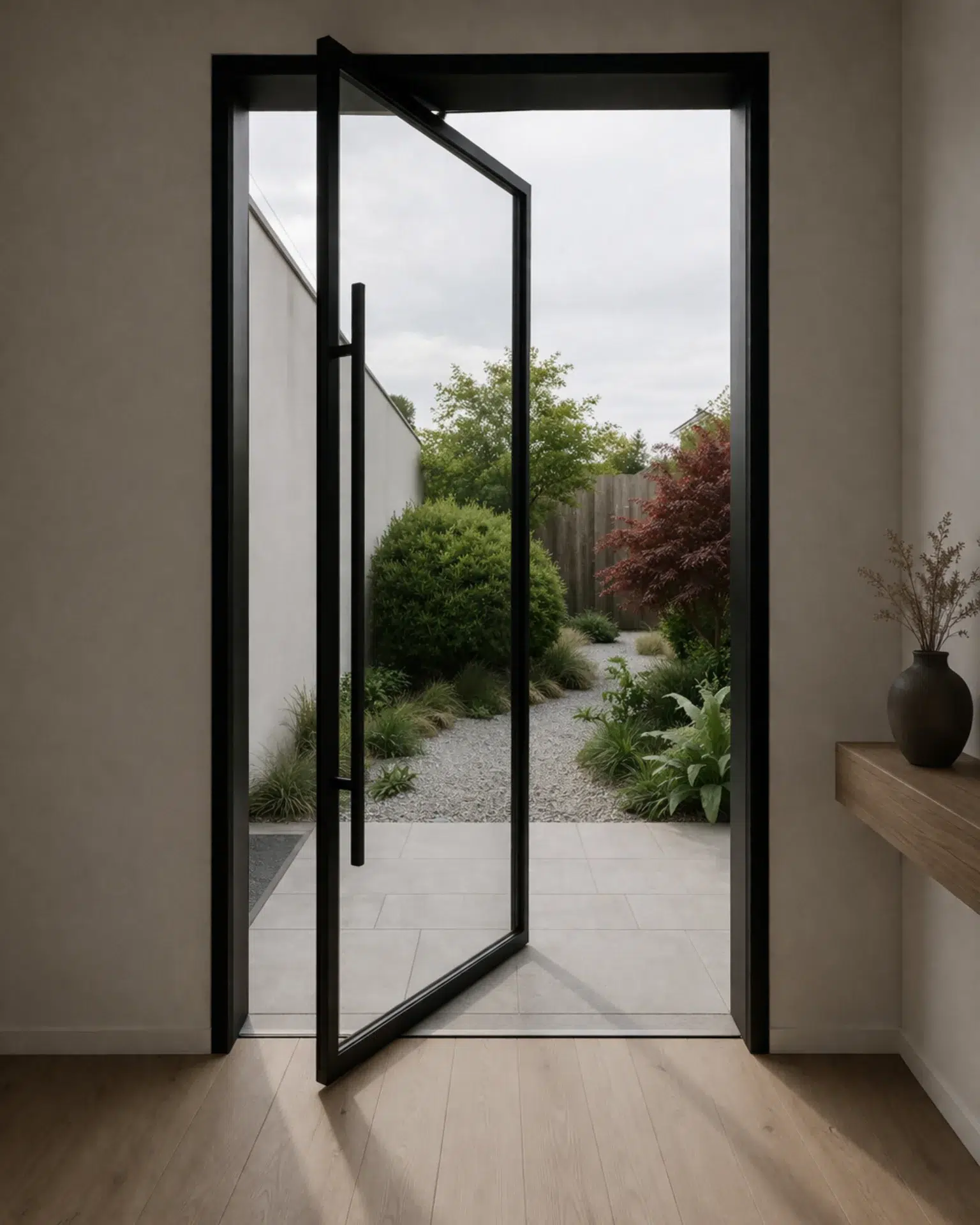

The VLX 100 Pivot Door is a heavy-duty aluminum statement piece that rotates on a vertical center axis instead of traditional side hinges. You get an oversized glass panel, a clean architectural line, and a door that feels substantial every time you push it open. It’s the door homeowners choose when they’re building or renovating a modern Orlando home and want the entry to set the tone for everything behind it. Hale Windows Orlando is an authorized ViewLux installation partner, which means you’re getting the product at full warranty strength, installed by a crew that works with these doors year-round. Call (850) 613-9382 to talk about your opening.

Call (850) 613-9382

Product Overview — VLX 100 Pivot Door

The VLX 100 comes from ViewLux, and Hale Windows Orlando is an authorized installation partner for the line. We bring it to homeowners across Orlando, FL who want an entry door that reads as architecture rather than just a way in and out. The pivot mechanism changes everything about how the door feels. Instead of swinging from one edge, the panel rotates on its vertical center axis. That lets the door carry more glass than a conventional hinged door ever could, because the weight distributes across the pivot point instead of hanging off side hinges.

The frame is aluminum with real substance behind it. The profile measures 2.56 inches wide, which gives the door a slim, modern sightline from outside, but the structure is engineered to hold oversized glass panels up to 60 inches wide and 120 inches tall. Wall thickness runs 0.098 inches, which is meaningful in an aluminum door. That thickness matters for torsional stiffness, how the door resists twisting and flexing over years of Orlando heat and humidity cycles. The result is a door that opens smoothly, seals tightly, and keeps its square year after year.

Buyers choose this series because it does something a standard entry door cannot. A 5-foot-wide pivot door with floor-to-ceiling glass changes the entire front elevation of a home. In Orlando neighborhoods like College Park, Delaney Park, Winter Park, and Baldwin Park, we see these doors going into mid-century ranch renovations, new modern builds, and custom lakefront homes where the owner wants the entry to feel like a design decision, not a default. Hale Windows Orlando handles the full process: measurement, ordering, installation, and warranty support. One point of contact from first consultation to final walkthrough.

Technical Specifications

• Frame material: Heavy-duty extruded aluminum with a 0.098-inch wall thickness, engineered for oversized panel stability.
• Profile width: 2.56 inches, giving a clean architectural sightline without sacrificing structural strength.
• Maximum panel size: Up to 60 inches wide by 120 inches tall, depending on glass weight and wind-load requirements for your specific Orlando location.
• Operation: Center-axis pivot rotation. The panel rotates on a vertical pivot point, not side hinges.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Thermal performance: Thermal break technology, NFRC-rated for energy performance.
• Weather performance: Airtightness, waterproofing, and sound control ratings tested per industry standards.
• Installation standard: AAMA 2400/2410 compliant installation methodology, AAMA 812 low-expansion foam sealant on all perimeter joints.
• Impact option: Laminated impact-resistant glass available for wind-borne debris zones.

Performance Features

Thermal Efficiency — The VLX 100 uses thermal break technology that separates the interior and exterior aluminum faces. In Orlando’s climate, that break is what keeps the inside of the frame from getting hot to the touch in August. The system carries NFRC-rated energy performance figures, which matters when you’re comparing doors and when you want to keep cooling costs down on a large glass entry.

Acoustic Performance — Aluminum is naturally a conductor of sound, which is why the seal system on the VLX 100 does real work. The perimeter gasketing and the mass of the oversized glass panel combine to cut down street noise. For homes in Orlando near busy corridors like Mills Avenue, Edgewater Drive, or Colonial, the difference between a standard door and the VLX 100 is noticeable the first week you live with it.

Airtightness & Weather Seal — The pivot design allows for a continuous perimeter seal that side-hinged doors can’t match. There’s no hinge side to gap out over time. Combined with AAMA 812 low-expansion foam sealant applied at all perimeter joints during installation, the door resists air infiltration that would otherwise push conditioned air out of your Orlando home.

Waterproofing — Orlando gets roughly 52 inches of rain a year, and afternoon thunderstorms are a fact of life from June through September. The VLX 100’s sill design and perimeter sealing are built for that reality. The door’s base sill works with proper flashing and drainage to direct water away from the threshold, and our installation includes water testing before we call the job done.

Wind Resistance — The door is wind-load rated for local climate requirements, which matters in Central Florida. Between summer thunderstorm gusts and the occasional tropical system, an entry door takes real pressure. The oversized aluminum frame and pivot hardware are engineered to hold the panel steady under load, not flex and leak. Laminated impact glass is an option if you’re in a wind-borne debris zone or simply want the extra protection.

Security & Hardware — The pivot mechanism itself is a security advantage. There’s no exposed hinge to attack, and the pivot point carries the weight of the panel across a substantial hardware assembly. Multi-point locking is compatible with the system, and the laminated glass option adds a layer that resists forced entry far better than standard annealed glass.

Color & Glass Options

The VLX 100 comes in six finish options, and the right choice depends on the language your Orlando home already speaks. Premium Black is the most requested finish across Central Florida right now. It reads sharp against white stucco, which you see constantly in neighborhoods like Thornton Park and College Park. Pure White works well on coastal-inspired homes and on renovations where the door should blend into a light facade. Anodized Silver and Bronze both lean architectural. Silver suits true modern boxes with exposed steel or concrete. Bronze is warmer and pairs well with wood accents and mid-century homes. Champagne splits the difference between warm and contemporary. Teak Wood is the wildcard. As an aluminum finish, it gives you the warmth of wood grain without the maintenance issues real wood has in Orlando’s humidity.

Glass selection changes how the door functions day to day. Clear glass maximizes the view and daylight transfer. Frosted glass gives privacy at eye level while letting light through, which works well for homes close to the street. Obscure glass offers full privacy with a textured look. Low-E is the energy play, reflecting heat while keeping the visual transparency. Tempered glass is standard for safety in full-height glass doors, and it shatters into small pieces rather than dangerous shards if broken. Laminated glass is the impact and security option. Two layers of glass bond to an interlayer, so the panel holds together even if it’s struck. If you’re in an Orlando home where wind-born debris or security is a concern, laminated is the answer.

Installation by Hale Windows Orlando in Orlando

We’ve installed enough pivot doors in Orlando, FL to know that the installation makes or breaks the product. A pivot door is not forgiving. The slab can weigh several hundred pounds with a full glass panel, and if the frame isn’t set dead level, the pivot axis is off. The door will swing open or closed on its own, the reveal will look wrong, and the seals won’t seat. That’s not a product defect. That’s an installation problem.

Our process starts with a pre-install inspection. We measure the rough opening, check the floor for level, and verify the structural support behind the framing. A door this heavy needs solid blocking or it will sag over time. If the opening isn’t right, we fix it before the door goes in. Once the frame is set, we check level, plumb, and square at three points. Then we anchor the frame and seal the perimeter with AAMA 812 low-expansion foam at every joint. That foam matters. It fills voids without bowing the frame, and it prevents the air and water intrusion that lead to rot, mold, and warranty claims.

Our installation follows AAMA 2400/2410 standards, which is the industry benchmark for window and door installation. That standard exists because every shortcut shows up later, usually as a leak or a stuck door. After the panel is hung and the pivot hardware is tuned, we run a water test on the threshold and perimeter, then do a full operation check. We adjust the pivot tension until the door moves the way it should. Finally, we clean up the job site and walk you through the door’s operation, maintenance, and warranty coverage.

One thing to be clear about: improper installation voids the manufacturer warranty. We’ve seen homeowners in Orlando try to save money with a general contractor who doesn’t do pivot doors, and it ends up costing more to re-hang and recalibrate than the installation would have in the first place. Hale Windows Orlando installs these doors regularly. We know the hardware, we know the tolerances, and we stand behind the work.

Frequently Asked Questions — VLX 100 Pivot Door

Get a Quote — VLX 100 Pivot Door in Orlando

The VLX 100 is a custom-order door, and the price depends on size, glass, finish, and the condition of your opening. The fastest way to a real number is an on-site measurement. Hale Windows Orlando serves all of Orlando, FL and the surrounding metro. Call (850) 613-9382 to schedule your free measurement and quote, and we’ll walk you through every option, from glass to finish to hardware. No pressure, just numbers.

Written by the team at Hale Windows Orlando, authorized ViewLux installation partner serving Orlando, FL.
