The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider built for openings most standard doors simply cannot handle. We’re talking spans up to 24 feet wide, with multi-track configurations that let you open entire walls to the Florida air. Hale Windows Orlando is an authorized ViewLux installation partner, which means we sell, measure, install, and service this door under warranty, right here in Orlando. If you’re planning a great room, a lakeside wall, or a commercial storefront in the Orlando area, this is the product conversation you need to have. Call us at (850) 613-9382 and we’ll walk you through what it costs for your specific opening.

Call (850) 613-9382

Product Overview – VLX 150 Heavy-Duty Sliding Door

The VLX 150 is part of ViewLux’s architectural series, and we position it for buyers who care about opening width more than anything else. It’s a strength-focused large-span aluminum slider with robust stainless hardware and multi-track configurations. Those three things together mean you’re not buying a patio door. You’re buying a movable glass wall.

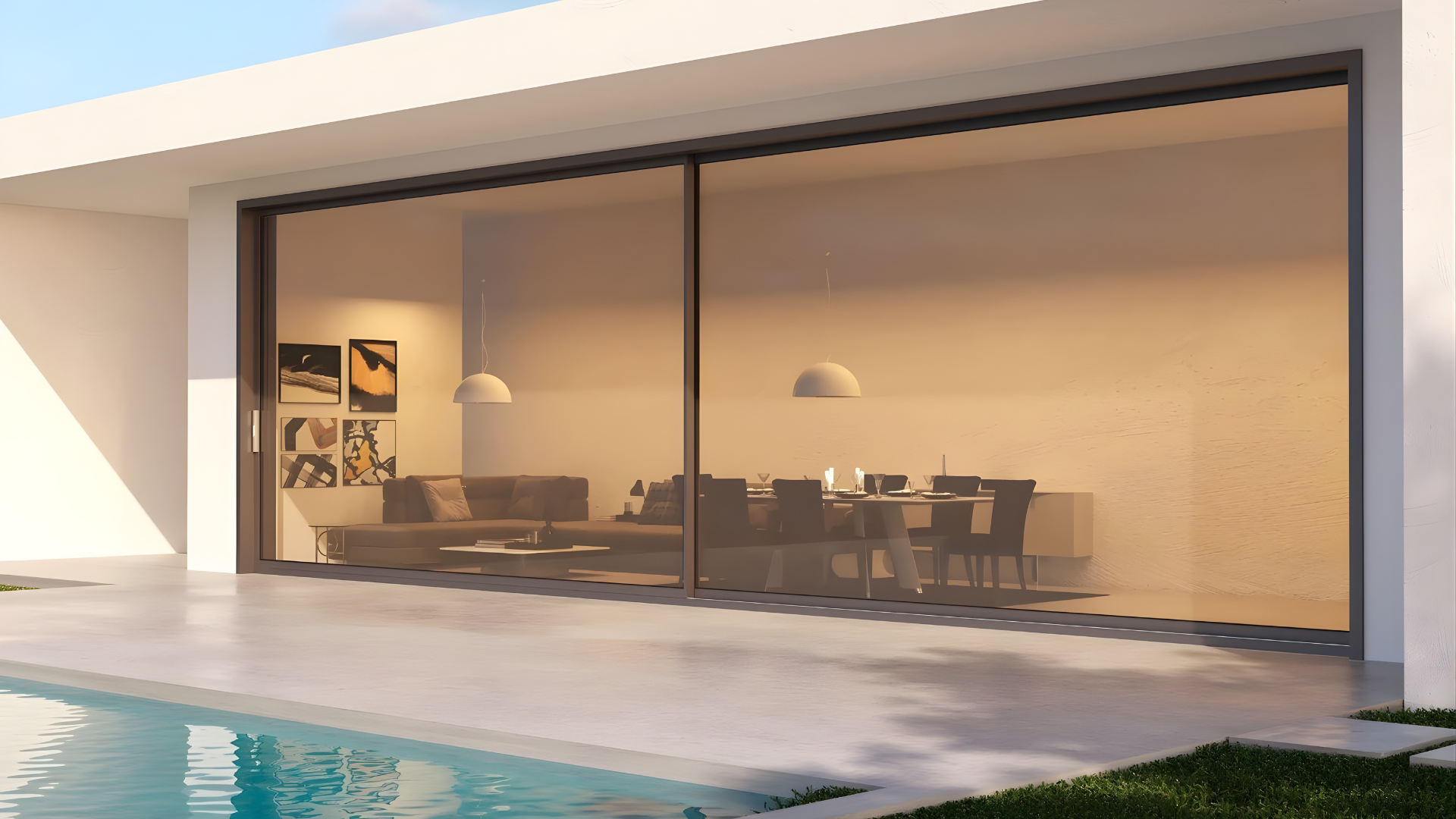

Where does this door make sense in a home? We’ve installed it in College Park Mid-Century Moderns where the owners wanted the back wall to disappear. We’ve spec’d it for custom builds in Winter Park where the living room overlooks a pool deck and the architect demanded a 20-foot clear opening with a corner pocket. It’s also a workhorse for restaurant storefronts and retail spaces in Thornton Park and along Mills 50, where owners need wide access during business hours and a secure closed position at night.

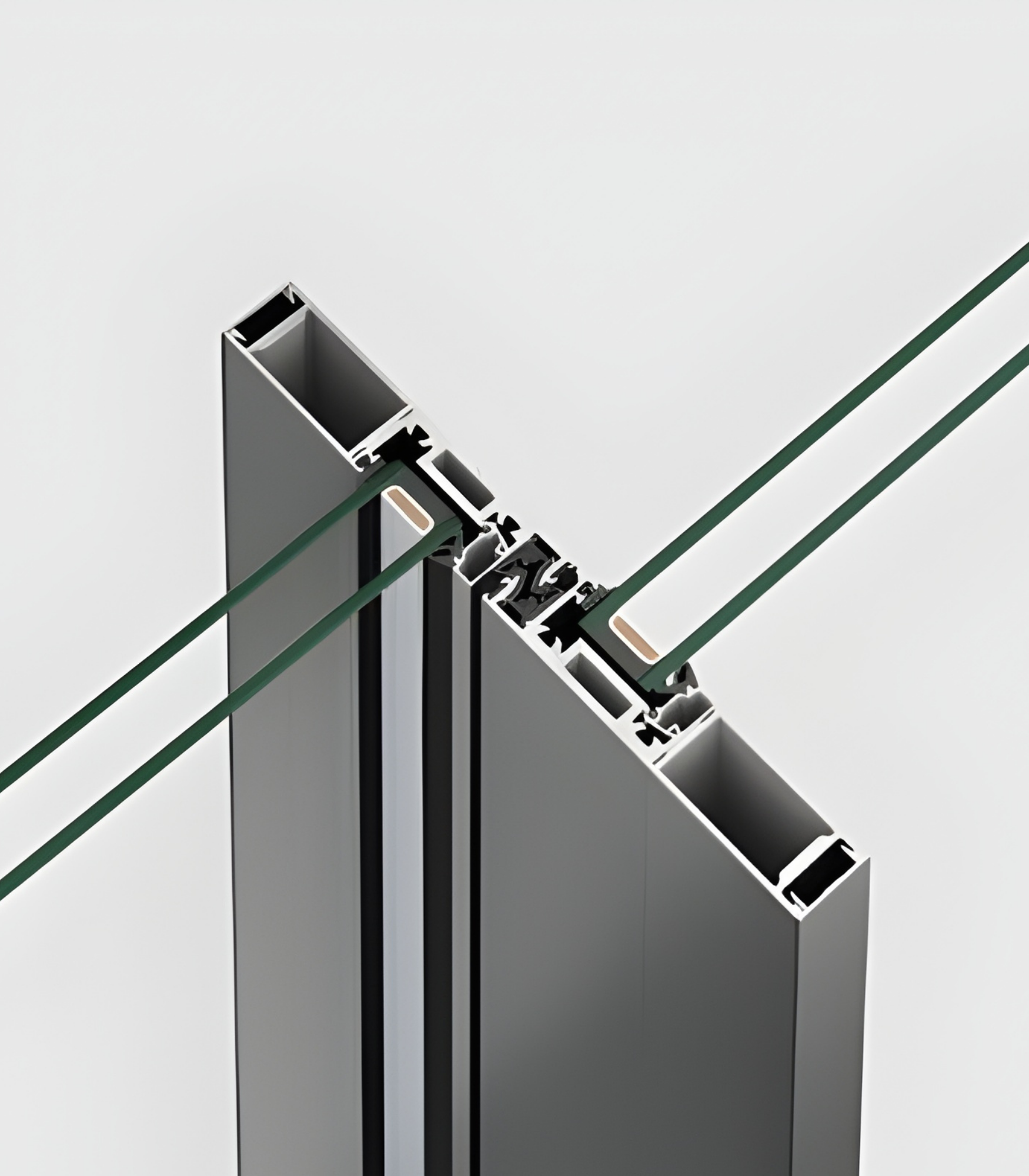

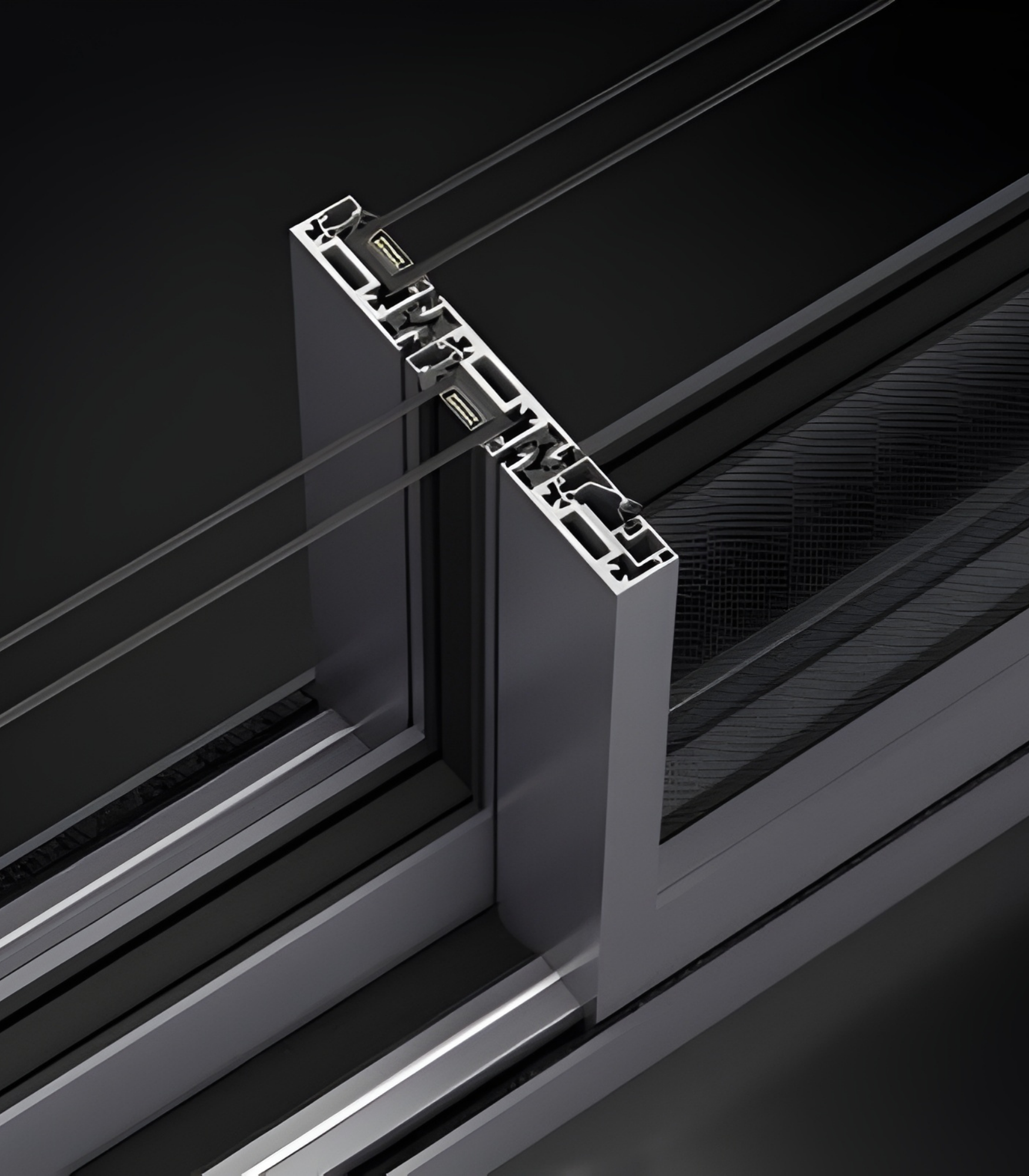

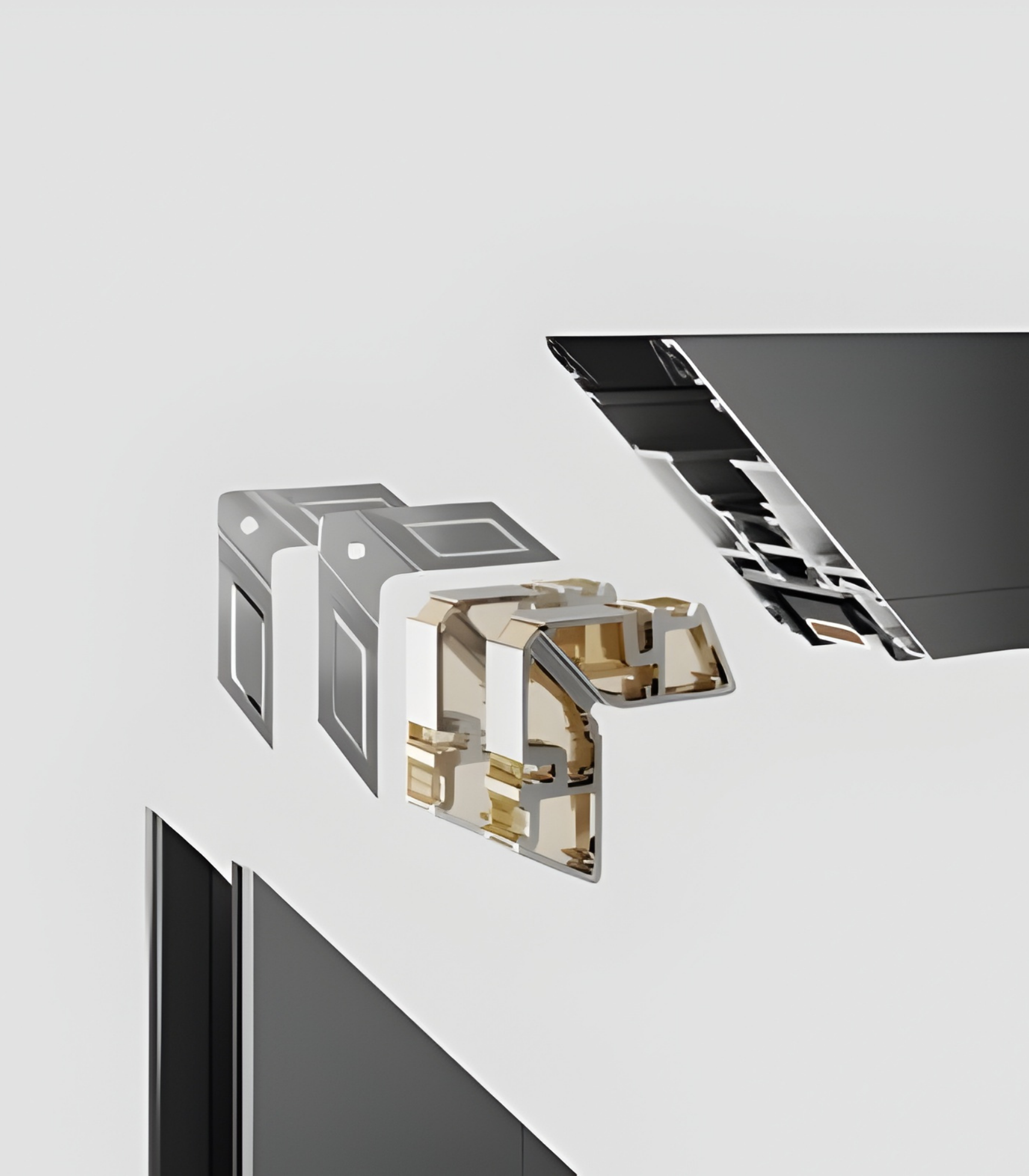

The frame is extruded aluminum with a 0.118-inch wall thickness and a 2.95-inch profile width. That’s a substantial section. It resists racking and deflection on long spans, which is exactly what you need when the door is 18, 20, or 24 feet wide. The rollers are stainless steel, mounted on reinforced carriages that can be adjusted over time as the door settles. The interlock between panels is deep and positive, so you don’t get that rattle-and-sag feel you do with cheap vinyl sliders after two Orlando summers.

Buyers choose the VLX 150 because they want the opening, but they also want a door that still operates smoothly five and ten years from now. The engineering supports that. The hardware is serviceable. The track system is designed for daily use cycles, not seasonal. In a city like Orlando, where the door will be opened and closed hundreds of times a month throughout a long outdoor season, that matters.

Technical Specifications

Here are the core specs for the VLX 150, framed the way we explain them to homeowners and contractors evaluating the product:

• Wall thickness: 0.118 inches – contributes directly to frame rigidity on oversized panels.
• Profile width: 2.95 inches – a slim sightline for a heavy-duty frame, so the door reads as glass first.
• Maximum span: Up to 24 feet wide – the whole reason this series exists.

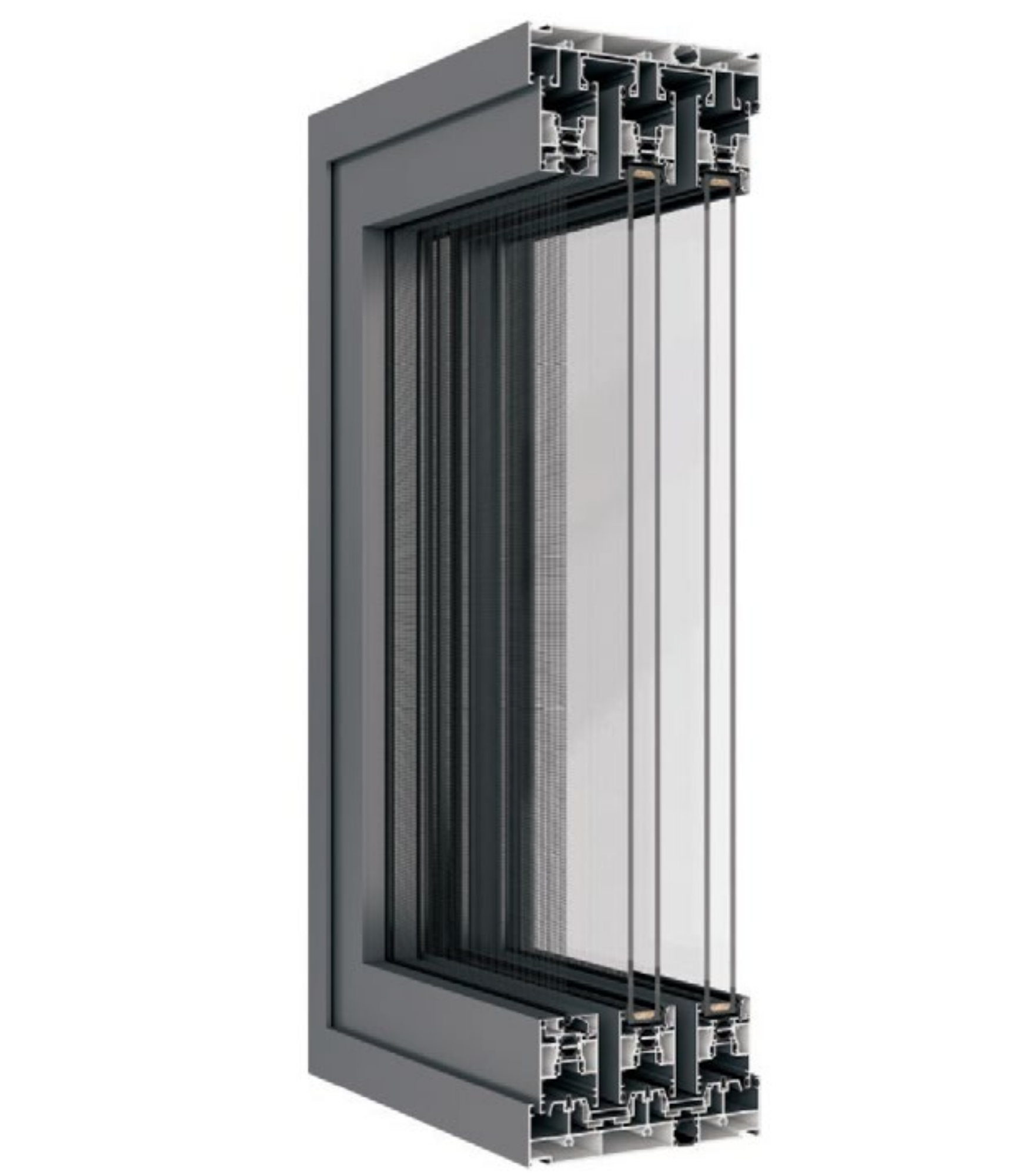

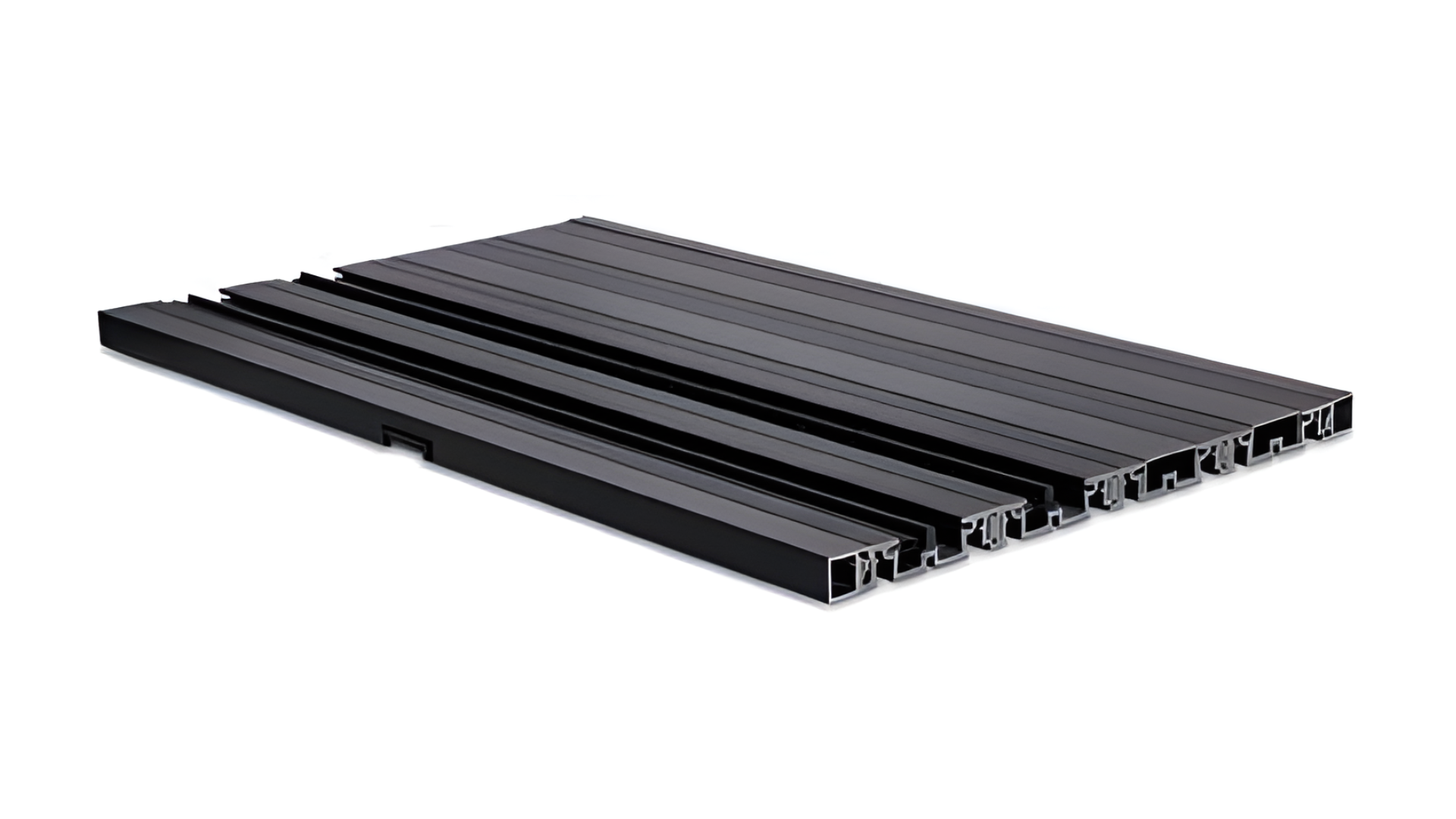

• Track configurations: 2-Track, 3-Track, and 4-Track – choose based on how many panels you want stacking and how wide your clear opening needs to be.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable Screen and Sliding Screen – both available for the VLX 150.
• Performance standards: NFRC-rated thermal break, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealing.

Lead times vary by configuration, finish, and glass package. We’ll give you a firm date when we quote the project.

Performance Features

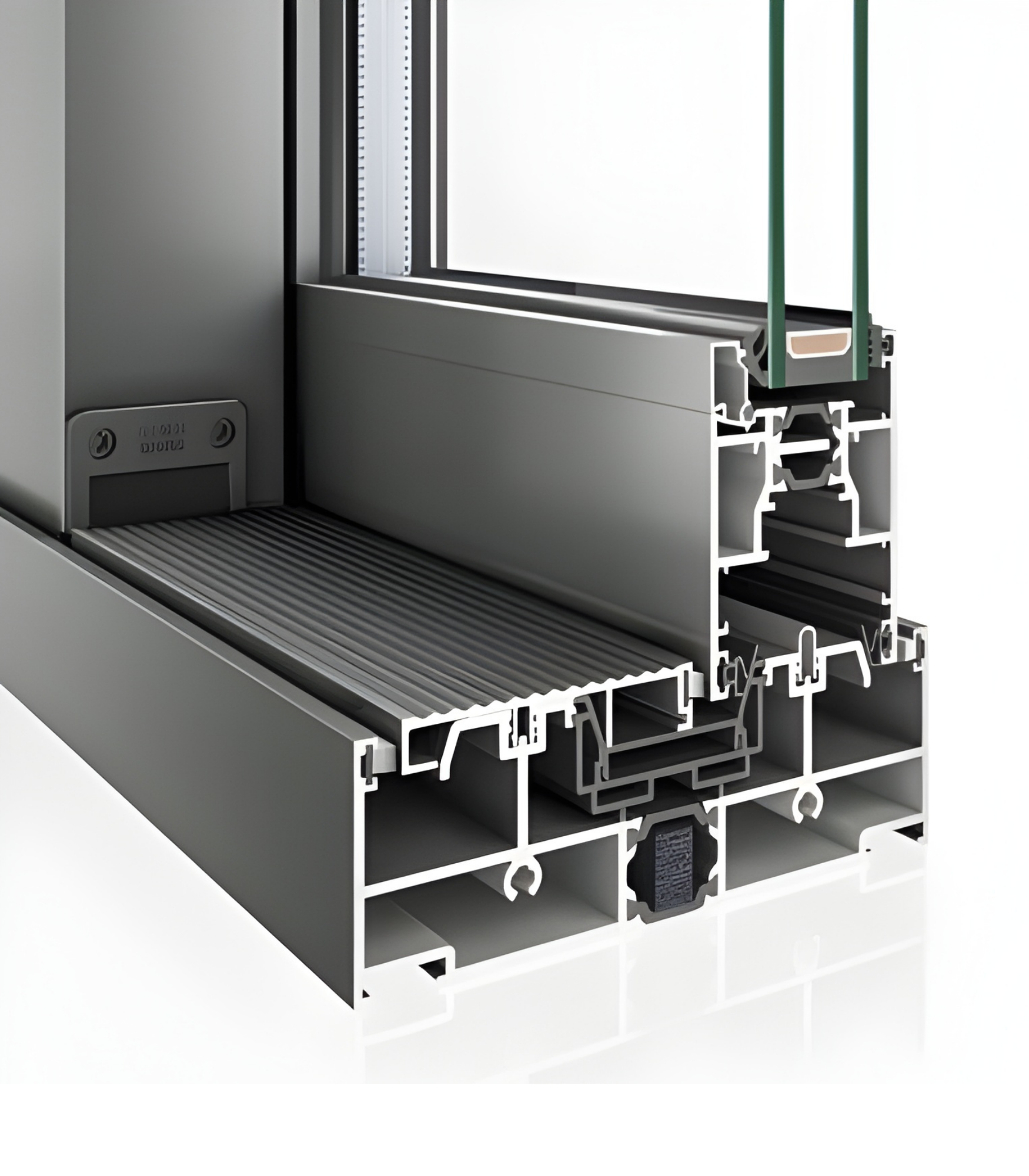

Thermal Efficiency – The VLX 150 carries full thermal break technology in the frame, separating the interior and exterior aluminum faces. That break is what gets the door its NFRC thermal performance rating and what keeps your Orlando air conditioning inside where it belongs. In a city with nine months of heat, the thermal break pays for itself. Low-E glass stacks on top for even stronger solar control.

Acoustic Performance – If you live near I-4, the 408, or a busy commercial corridor, you already know that outdoor noise never really stops. The VLX 150’s deep frame pockets and laminated glass option knock down a real amount of that sound. Laminated glass is the single biggest acoustic upgrade you can make on any door, and it’s available right on this series.

Airtightness & Weather Seal – Every panel in the VLX 150 closes into compression gaskets that run the full height of the frame and interlock. What that means in practice: no air whistling through on a windy afternoon, no dust film accumulating on your floors near the track, and no humidity ghosting its way into the room. The door is engineered as a sealed unit, not just glass in a track.

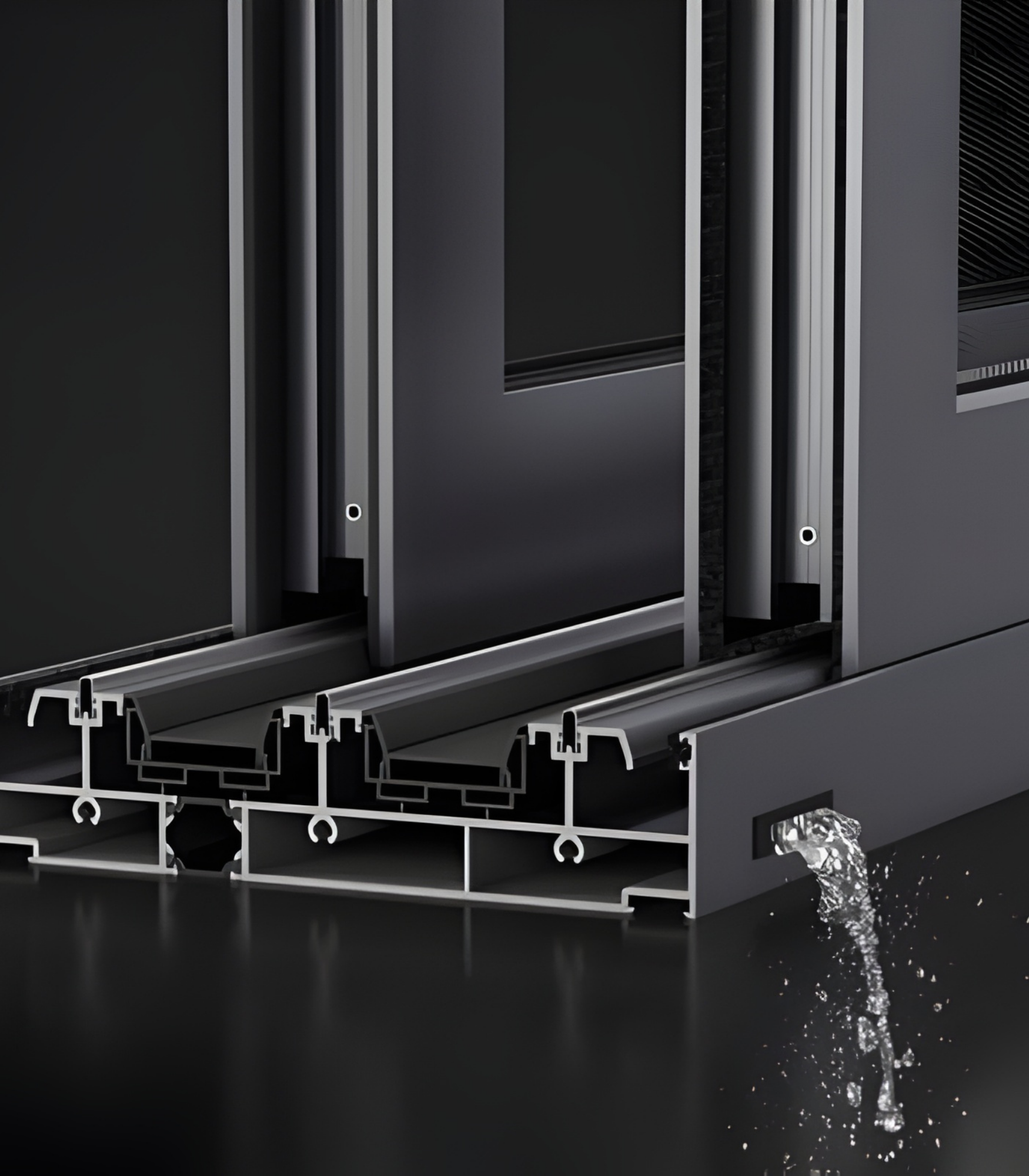

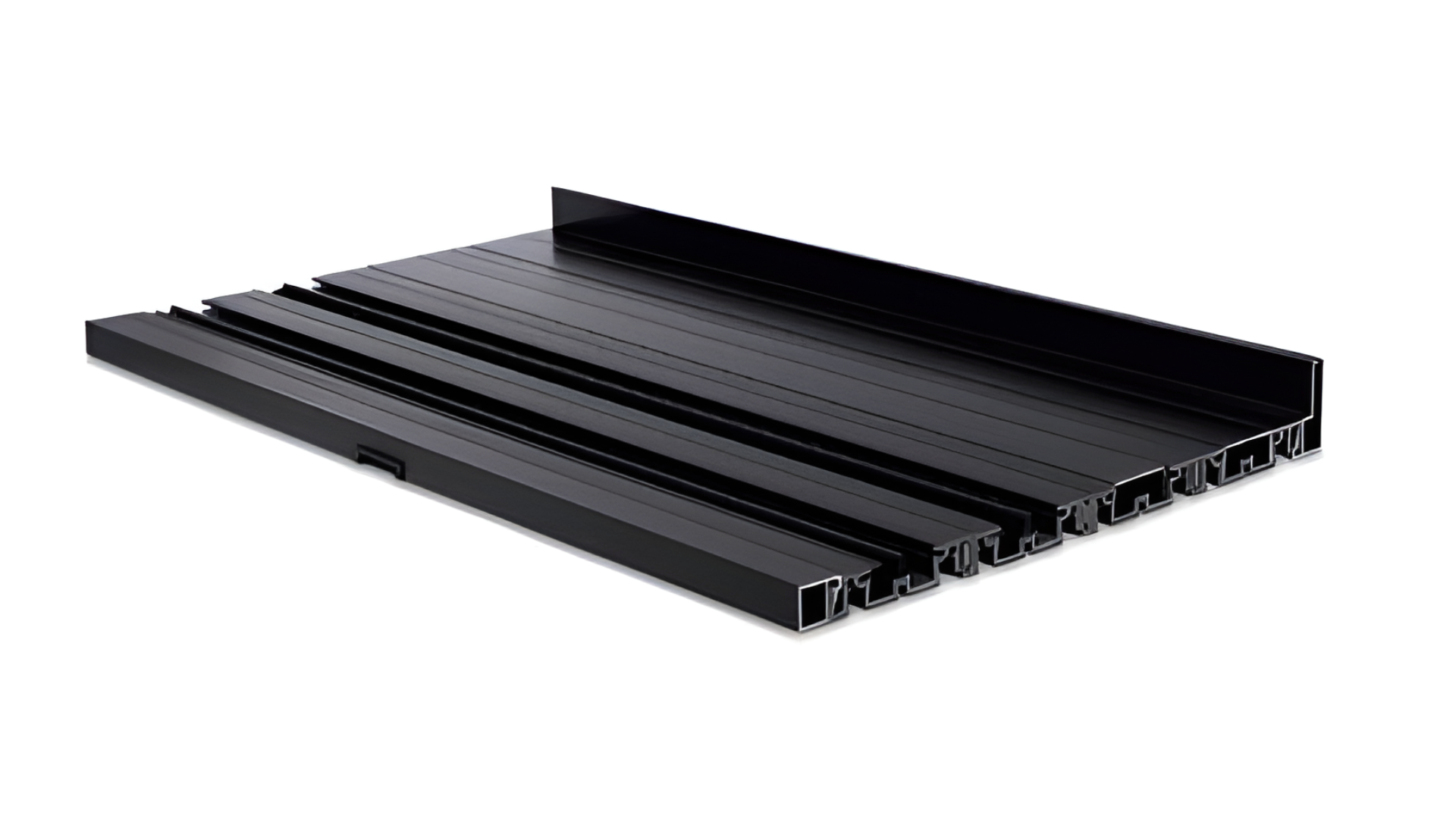

Waterproofing – Florida rain is aggressive, and it’s often horizontal during summer storms. The VLX 150’s sill is designed with a multi-chamber drainage path that moves water out even under wind pressure. Combined with the AAMA 812 low-expansion foam perimeter seal our installers apply on every job, the system is built for what an Orlando storm actually throws at a door.

Wind Resistance – Central Florida sees wind loads that no generic sliding door was designed to take. The VLX 150 is wind-load rated for local climate requirements, and adding the laminated impact-resistant glass option brings it into high-velocity hurricane zone territory. We’ll help you determine what your specific property needs based on your exposure and building code requirements in Orlando and Orange County.

Security & Hardware – The hardware on this door is stainless steel. Not coated steel, not plastic-tipped. Stainless. The multi-point locking system engages at the top and bottom of the panel, not just a center latch, so the closed door resists forced entry in a way that single-point sliders cannot. In Orlando neighborhoods where homeowners want wide glass without sacrificing security, this is the answer.

Color & Glass Options

The VLX 150 comes in six finishes, and most of them are powder-coated, meaning the color is baked on and won’t chalk or fade in the Florida sun. Premium Black is the most popular choice in Orlando right now, especially on modern farmhouse and contemporary builds where the dark frame creates that crisp contrast against white stucco or light brick. Pure White suits traditional Florida homes, Spanish Revival, and anything coastal. Anodized Silver gives you that raw aluminum look with superior corrosion resistance and fits commercial storefronts well. Bronze is a warmer dark tone that bridges modern and transitional architecture. Champagne reads as a light metallic neutral for homes with warm stone or travertine accents. Teak Wood is a woodgrain-textured finish, and it’s the choice when you want a warm look without the maintenance of real wood in Orlando’s humidity.

On glass: Clear is exactly what it sounds like and gives you maximum visible light. Low-E is our default recommendation for any door in Orlando because it cuts solar heat gain without noticeably darkening the glass. Tempered is required by code on doors and large glass panels for safety. Laminated adds impact resistance and sound control. Gray Tint and Black Tint reduce glare and solar heat for west-facing walls that get hammered by the late-afternoon sun.

Installation by Hale Windows Orlando in Orlando

We install the VLX 150 the way it was designed to be installed: level, plumb, square, and sealed to the AAMA 2400/2410 standard. That’s not a marketing line. It’s a published installation standard that governs how the rough opening is prepared, how the door is anchored, and how the perimeter is sealed. Most door failures we see in Orlando are installation failures, not product failures. A heavy aluminum slider that’s set even slightly out of level will telegraph that error into every panel, every roller, every lock. A door that’s installed without proper perimeter sealing will leak, no matter how good the sill is.

We start with a pre-installation inspection of the rough opening: dimensions, squareness, and substrate condition. We don’t install into an opening that hasn’t been properly prepared. Then the door is set and shimmed, checked for level on both axis, and anchored per the manufacturer’s engineering. We run AAMA 812 low-expansion foam around the entire perimeter, interior and exterior. That sealant expands to fill the gap without bowing the frame, and it stays flexible through the expansion and contraction cycles that Orlando heat puts on every building component.

After the foam cures, we run a water test on the sill and lower corners. Then we hang the panels, dial in the rollers, and test the operation across the full travel of every panel. When we leave, the job site is clean and the door works. Here’s the practical reason all of this matters: the manufacturer’s warranty on the VLX 150 is contingent on proper installation. If an unqualified crew drops it in the hole and walks away, you own every problem that follows. We’ve been the fix-it crew on too many of those jobs in Orlando to pretend otherwise.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Orlando

If you’re ready to price a VLX 150 for your Orlando home or commercial project, we’ll schedule a free on-site measurement and give you a written, line-item quote. No ballparks, no games. You get real numbers for your actual opening. Call Hale Windows Orlando at (850) 613-9382 to schedule your free estimate and start the conversation.
