VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Orlando, FL | Hale Windows Orlando

The VLX 80 Fixed / Picture Window is a non-operable, maximally glazed aluminum window built for one purpose: putting an unobstructed view where a wall used to be. It’s the window Orlando homeowners and architects specify when they want a floor-to-ceiling glass wall without mullions, visible hardware, or anything else competing with the light. Hale Windows Orlando installs this system as an authorized ViewLux installation partner, so you get the factory-engineered product and a crew that sets it level, plumb, and square per AAMA standards. Call (850) 613-9382 to talk about your opening size, glass package, and timeline. Estimates are free.

Call (850) 613-9382

Product Overview – VLX 80 Fixed / Picture Window

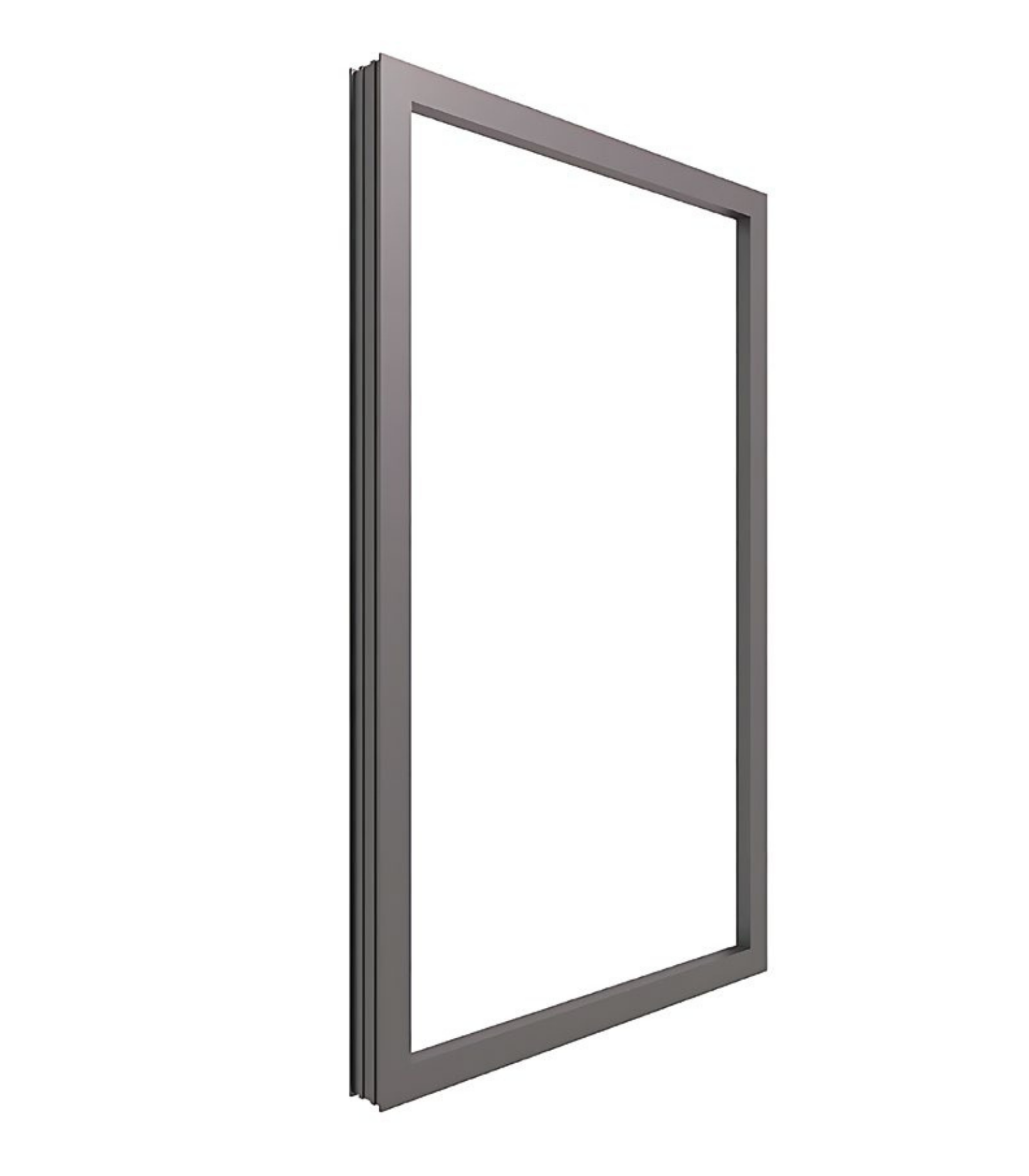

Picture windows are the hardest-working windows in modern Orlando homes. They don’t open, they don’t tilt, and that’s the point. Every square inch of frame is optimized for glass, which means the VLX 80 delivers what casements and sliders can’t: a single, uninterrupted plane of light. The fixed aluminum frame has a profile width of 1.97 inches, slim enough to disappear at the edges while still carrying serious structural load. With a maximum span of up to 120 inches wide, one unit can stretch across much of a living room wall.

Why aluminum? Because in Orlando’s humidity, wood moves. It swells in the wet season, shrinks in the dry months, and eventually the paint fails. Aluminum doesn’t have that problem. The VLX 80 uses a 0.079-inch wall thickness, which gives the frame rigidity without the bulk of older aluminum systems. That thickness matters when a unit is 10 feet wide and the afternoon thunderstorm hits. The frame stays true.

Hale Windows Orlando carries this product line because we see what Orlando buyers actually ask for: big glass, low maintenance, and performance numbers that hold up during hurricane season. The VLX 80 is the answer we point to most often for great rooms, stair landings, and any wall where the view does the real work. It’s not a budget window, and we’re straightforward about that. It’s a window you buy once.

Technical Specifications

The numbers below are the factory specs for the VLX 80 fixed unit. We list them here because most Orlando homeowners want to compare before they commit, and we’d rather you saw the real dimensions up front.

• Frame wall thickness: 0.079 inches of extruded aluminum
• Profile width: 1.97 inches visible frame face
• Maximum unit span: 120 inches wide per panel
• Operation: Fixed / non-operable picture window
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal performance: Thermally broken frame, NFRC-rated energy performance
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 perimeter sealant

No visible hardware on the interior face. No operator, no crank, no lock mechanism to maintain. The fixed unit is as close to maintenance-free as a window gets in the Orlando market.

Performance Features

Here’s how the VLX 80 holds up in Orlando’s climate, which means high UV, summer rain measured in inches per hour, and wind gusts that test every window in the house.

Thermal Efficiency

The VLX 80 uses thermal break technology in the aluminum frame, which is the industry’s answer to aluminum’s natural conductivity. A thermally broken frame interrupts the transfer of heat between the outside face and the inside face. Combined with a Low-E glass package, the unit carries NFRC-rated performance numbers. In Orlando, that translates to less heat gain in July and a lower cooling bill.

Acoustic Performance

Fixed windows outperform operable windows for sound because there are no gaps at the meeting rails. The VLX 80’s continuous perimeter seal and laminated glass option add another layer. For Orlando homes near I-4, Semoran Boulevard, or the train corridor through Winter Park, we regularly recommend laminated glass for this exact reason. The sound reduction is noticeable the day of installation.

Airtightness & Weather Seal

The fixed design means zero mechanical joints where air can leak. The glazing is set into the frame, and the frame is sealed at every perimeter joint with AAMA 812 low-expansion foam sealant. That’s not a buzzword. It’s a specific standard for foam that expands just enough to fill the gap without bowing the frame. Airtightness is where energy performance and comfort actually come from in a Florida house.

Waterproofing

Orlando gets about 52 inches of rain a year, often in short violent bursts. The VLX 80’s fixed frame sheds water at the sill level, and the AAMA 2400/2410 installation standard governs how we flash and seal the opening. No caulk-only installs. The sill pan, perimeter sealant, and drainage path are all part of the installation, not an afterthought. Mist prevention starts with a properly executed perimeter seal.

Wind Resistance

The 0.079-inch wall thickness and 1.97-inch profile depth give the VLX 80 real resistance to deflection under wind load. For Orlando homeowners who want impact protection, laminated glass is the option that changes everything. An impact-rated laminate holds the glass together even if it’s struck, which is a requirement for many newer Orlando builds and a smart upgrade for any home in the hurricane zone. Wind-load ratings are matched to local code at the time of ordering.

Security & Hardware

Fixed windows are inherently secure because there’s no lock to pick and no sash to force. The VLX 80’s continuous frame and deep glazing pocket make it harder to pry than a typical operable window. Add laminated glass and the unit becomes a real barrier. For ground-floor Orlando installations facing a street or side yard, we’ll often recommend the laminated upgrade for security reasons alone.

Color & Glass Options

The VLX 80 offers six finish choices. Premium Black is the current favorite in Orlando’s modern and farmhouse-modern builds, especially in Baldwin Park, College Park, and the newer custom homes in Winter Garden. Pure White suits traditional Florida homes and anything with a coastal palette. Anodized Silver has a raw metallic look that works well with mid-century and industrial designs. Bronze is warm and understated, a good match for stucco colors common across Central Florida. Champagne adds warmth without going dark. Teak Wood is a woodgrain-look finish for buyers who want wood’s warmth but not wood’s maintenance in Orlando humidity.

The seven glass options cover nearly every situation. Clear glass is the most affordable and the least modified. Frosted works for bathroom or street-facing openings where privacy matters. Low-E is the default recommendation for energy performance. Tempered is required by code for certain sizes and locations, including glass near doors and in large fixed units. Laminated delivers impact resistance and sound control. Gray Tint and Black Tint control glare and heat gain on unshaded west-facing walls, which we see a lot of in Orlando homes with afternoon sun exposure.

Installation by Hale Windows Orlando in Orlando

A picture window is only as good as the opening it’s set in. That’s not sales talk. We’ve pulled enough failed window installs out of Orlando homes to know the pattern: someone bought quality glass, then cut corners on the install. The result is a warranty that doesn’t matter because the problem was never the window. The manufacturer’s warranty on the VLX 80 covers defects in the product. It does not cover leaks caused by a poor installation. That’s the difference between a licensed installer and a handyman.

Every VLX 80 we install in Orlando goes through the same process. First, a pre-install inspection of the rough opening. We check the opening dimensions against the ordered unit, inspect the framing for rot or movement, and verify the rough sill is level. If the opening isn’t right, the window gets delayed until it is. We don’t shim a bad opening and hope for the best.

Then the unit is set level, plumb, and square. On a 120-inch fixed window, being out of square by even a quarter inch puts stress on the glass and the frame. We check with a laser on every opening, not a bubble level that’s been bouncing around the truck for five years.

Perimeter sealing follows AAMA 812, the standard for low-expansion polyurethane foam on window and door perimeters. We foam the entire perimeter, let it cure, then trim. The exterior gets flashed and sealed so water drains away from the opening, and the interior is finished with a clean sealant line. On larger fixed units, the glazing gets inspected for any factory seal damage before the unit leaves the shop. After installation, we run a water test on the opening, clean the glass inside and out, and walk the homeowner through the final product. Orlando’s summer storms do not give new windows a break-in period. They test everything immediately.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Orlando

Whether you’re building new or replacing a dated window, the VLX 80 Fixed / Picture Window is worth spec’ing properly. Call Hale Windows Orlando at (850) 613-9382 and we’ll schedule a free on-site measurement, talk through glass packages and finishes, and give you a written line-item quote. No pressure, no gimmicks. Just an honest price for the window you actually want.

Written by the team at Hale Windows Orlando, an authorized ViewLux installation partner serving Orlando, FL.
