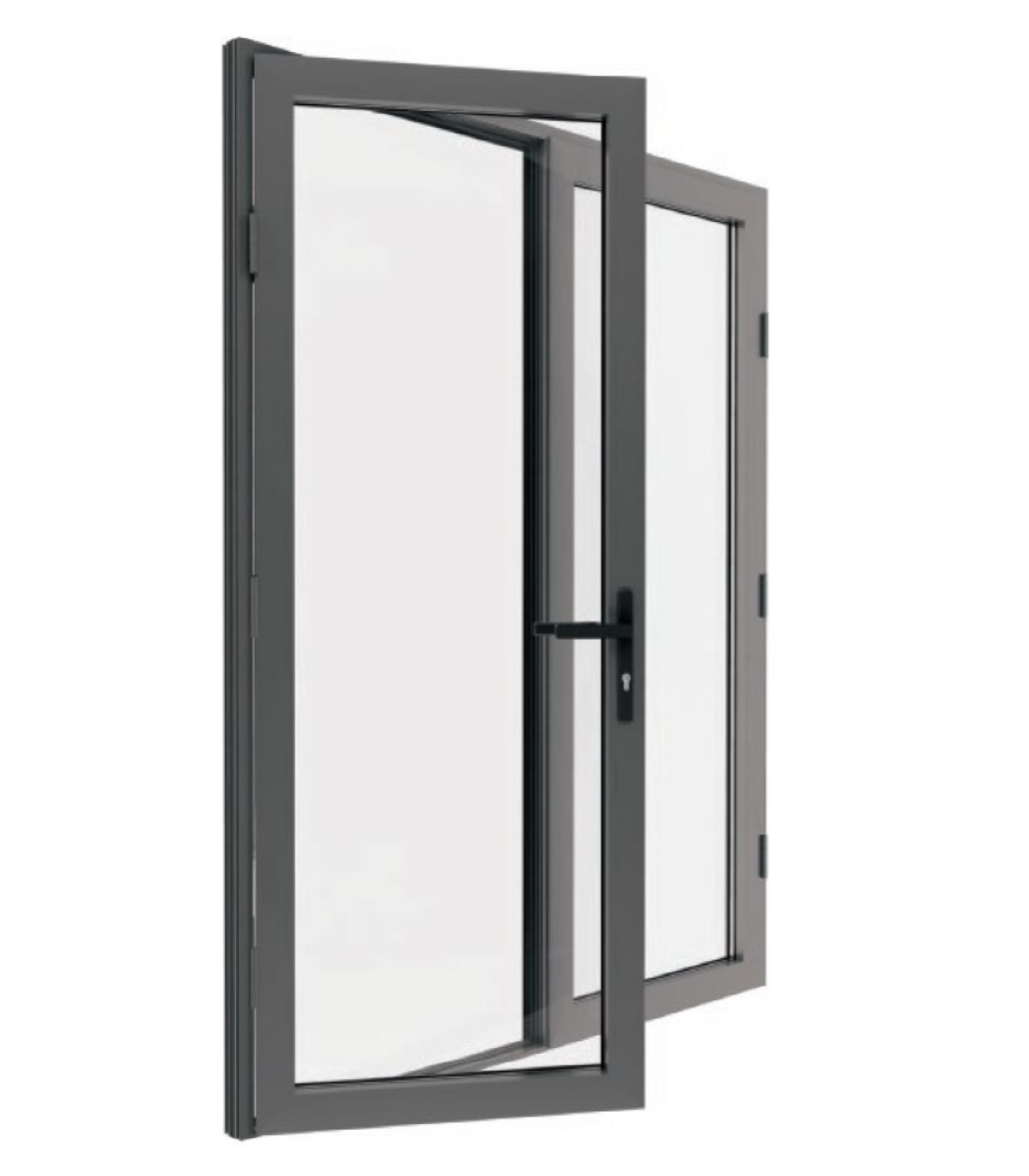

VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Orlando, FL | Hale Windows Orlando

The VLX 100 Double Swing / French Door is a paired aluminum door system built for wide openings where you want light, access, and a clean architectural line. Homeowners across Orlando choose it for patio transitions, sunrooms, and interior-to-lanai connections where sliding doors feel too restrictive. Both panels swing open, which gives you the full width of the opening when you’re entertaining or moving furniture. Hale Windows Orlando is an authorized ViewLux installation partner, meaning your door arrives factory-spec and gets installed to manufacturer standards. That combination matters in Central Florida, where humidity, afternoon storms, and high wind loads punish poorly installed doors. Call (850) 613-9382 to talk through sizing and pricing.

Call (850) 613-9382

Product Overview – VLX 100 Double Swing / French Door

The VLX 100 series takes the traditional French door concept and rebuilds it around aluminum. You get the paired-door look that works so well in Orlando homes, from College Park bungalows to Dr. Phillips lakefront properties, but without the warping, swelling, and sagging that wood doors deal with in Florida humidity. The frames are extruded aluminum with a wall thickness of 0.098 inches and a profile width of 2.56 inches, which gives you a slim sightline that still carries real structural load.

The design centers on symmetry. Both panels are identical in width and profile, so the door reads as one balanced architectural element from inside and out. The flush threshold means no raised sill to trip over, which matters when you’re carrying a tray out to the pool deck or your kids are running in and out. And the multi-point lock hardware engages at the top, bottom, and center of the active panel, which is a significant step up from the single deadbolt you’ll find on most French doors.

Where the VLX 100 really earns its place in Orlando is in how the aluminum handles the climate. Aluminum does not absorb moisture. It does not expand and contract the way vinyl does during a Central Florida summer. It holds its geometry, which means the door keeps sealing properly year after year. Buyers who have replaced a swollen wood French door once understand why this matters. Buyers who haven’t will find out the first August.

Hale Windows Orlando recommends this series for openings up to 96 inches wide. Within that range, the door performs. Beyond it, we’ll suggest a different configuration. Part of being an authorized partner is knowing where a product’s engineering stops and steering you accordingly.

Technical Specifications

• Frame material: Extruded aluminum, 0.098-inch wall thickness
• Profile width: 2.56 inches
• Maximum opening span: 96 inches wide (paired panels)
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Hardware: Multi-point lock system, active and passive panel
• Sill: Flush threshold, no raised saddle
• Screen options: Retractable screen or no screen

These specs are the factory values as ViewLux builds the door. What they mean in practice is a door that stays square, seals tight, and swings true even after years of Orlando weather. The 0.098-inch wall thickness is heavier than many residential aluminum doors on the market, which is part of why the VLX 100 carries its wind-load rating without needing a bulky third panel or oversized mullion.

Performance Features

Thermal Efficiency

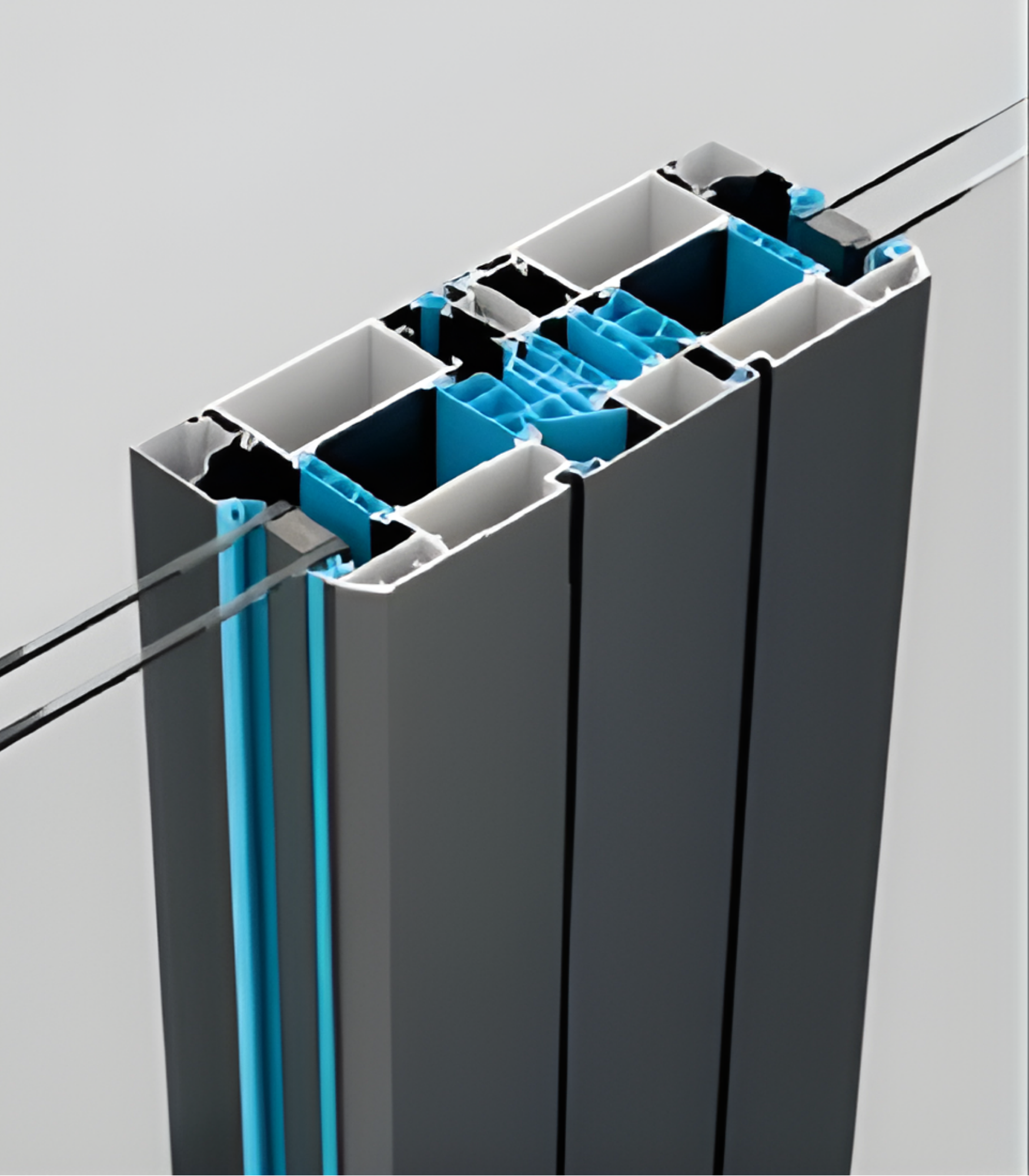

The VLX 100 uses thermal break technology to separate the interior and exterior aluminum faces. Without the break, aluminum conducts heat directly from the outside surface to the inside surface, and your AC fights that all summer. With it, the frame resists heat transfer. Pair that with Low-E glass and you have a door system with NFRC-rated energy performance that makes sense for Orlando’s cooling-dominant climate.

Acoustic Performance

Orlando isn’t quiet. You’re near I-4, or the 408, or a neighbor’s pool pump, or all three. The VLX 100’s double-sealed frame and laminated glass option both contribute to meaningful sound reduction. Laminated glass adds a middle layer that interrupts sound vibration, and when you combine it with the door’s airtight perimeter, the difference is noticeable even in a Windermere neighborhood with active outdoor living around you.

Airtightness & Weather Seal

The door’s weather-stripping runs continuously around both panels and the meeting stile where the doors close against each other. That’s the fail point on most French doors: the center seam. The VLX 100’s multi-point hardware pulls the panels into that seal at three points, which compresses the gasket evenly. The result is an airtightness rating that holds against the conditioned air inside your Orlando home and the 94-degree humidity outside.

Waterproofing

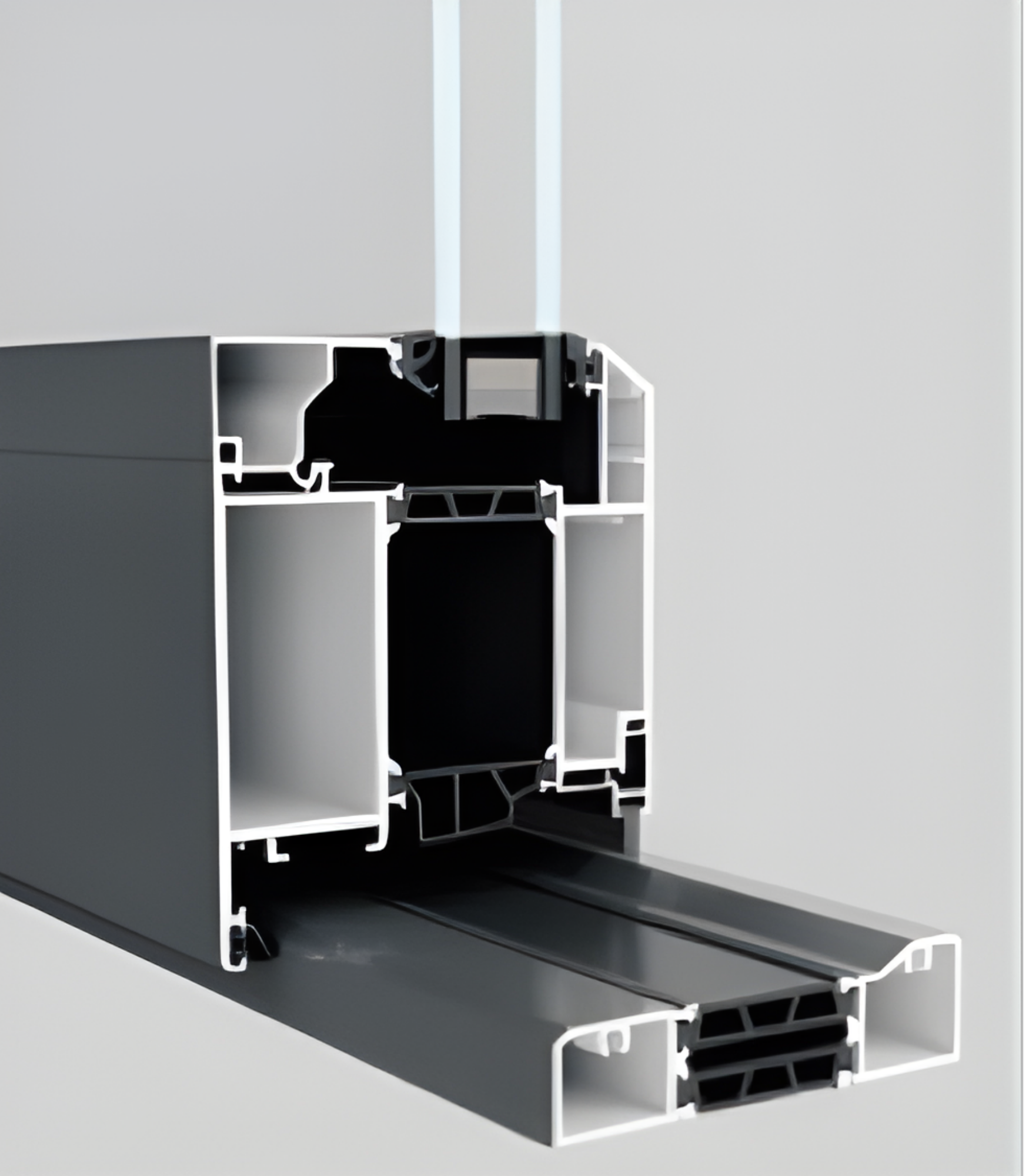

At the manufacturing level, the VLX 100’s sill design channels any water that does get past the outer seal back to the exterior. At the installation level, this is where Hale Windows Orlando’s process matters most. Every perimeter joint gets AAMA 812 low-expansion foam sealant, and the sill is flashed so that water collecting at the threshold exits away from your subfloor. Orlando gets roughly 51 inches of rain a year, often in short violent bursts. The door system and the installation both have to be ready for that.

Wind Resistance

Central Florida wind loads are not a suggestion. Hurricane season runs June through November, and even a typical afternoon thunderstorm can push 40 to 50 mph gusts. The VLX 100 is wind-load rated for local climate requirements, and when you select the impact-resistant laminated glass option, the door meets the tougher standard that many Orlando-area HOAs and code jurisdictions ask for. Ask us about your specific property’s exposure zone.

Security & Hardware

Multi-point locking is the single most meaningful security upgrade in this door. The lock engages at the head, the sill, and the center of the opening, which makes forcing the door dramatically harder than a single-point deadbolt. The hardware is integrated into the frame rather than surface-mounted, so there are no exposed screws to back out over time. In Orlando, where sliding glass doors are a known entry point, this matters.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black sits well on modern Orlando homes and on the increasingly common black-trimmed exterior trend across Winter Park and Baldwin Park. Pure White is the traditional Florida choice, bright and clean against stucco. Anodized Silver has a metallic sheen that works with mid-century or contemporary builds. Bronze and Champagne both read as warm neutrals, and they hide water spotting better than darker colors around pool decks. Teak Wood is a faux-wood finish for buyers who want the French door look of timber without the maintenance, popular on Orlando homes where the HOA requires a wood-toned aesthetic.

For glass, Clear is the standard. Low-E is what we recommend for any Orlando door that gets direct sun; it cuts solar heat gain noticeably. Frosted and Obscure glass suit bathrooms, home offices, or any door facing a neighbor. Tempered glass is the safety standard for doors, and Laminated adds both impact resistance and sound damping. You can combine glass types, so a Low-E laminated panel is an option if you want wind protection and energy performance together.

Installation by Hale Windows Orlando in Orlando

A well-built door installed poorly becomes a bad door within two years. The VLX 100 carries a manufacturer warranty that assumes correct installation. If the door is set out of square, or the sill isn’t properly sealed, or the perimeter foam is skipped, the warranty simply does not apply. That’s the quiet risk in buying a premium door from a low-bid installer.

Hale Windows Orlando installs every VLX 100 according to AAMA 2400/2410 standards, which is the reference for residential window and door installation. Our process starts with a pre-install inspection of the rough opening. We check the framing for square, level, and plumb before the door ever leaves the truck. If the opening is out of spec, we correct it then, not after the door is flashed in.

During installation, the door is set level and plumb with shims placed behind the hinges and lock points, not randomly around the frame. That keeps both panels swinging true from day one. The entire perimeter gets AAMA 812 low-expansion foam sealant, which does two jobs in Orlando’s climate: it seals air and water, and it blocks the entry point where Florida’s humidity breeds moisture problems. Low-expansion matters because standard expanding foam can bow an aluminum frame, and a bowed frame means a door that doesn’t seal.

After the door is fastened and flashed, we run a water test on the sill and bottom corners, then finish with interior and exterior trim and a full cleanup. You’ll know the door is ready before we leave. For Orlando homeowners, this process matters because the stakes are higher here: sub-tropical humidity, daily thermal cycling, and building codes that reflect hurricane exposure. The door is only as good as what holds it in place.

Frequently Asked Questions – VLX 100 Double Swing / French Door

Get a Quote – VLX 100 Double Swing / French Door in Orlando

The fastest way to get exact pricing is an on-site measurement. Every opening is different, and a tape measure from across the room won’t tell us whether your rough opening is square. Call (850) 613-9382 and we’ll schedule a free measurement and quote for your Orlando home. Written, line-item pricing before you commit, no surprises after.

Written by the team at Hale Windows Orlando, authorized ViewLux installation partner serving Orlando, FL.
